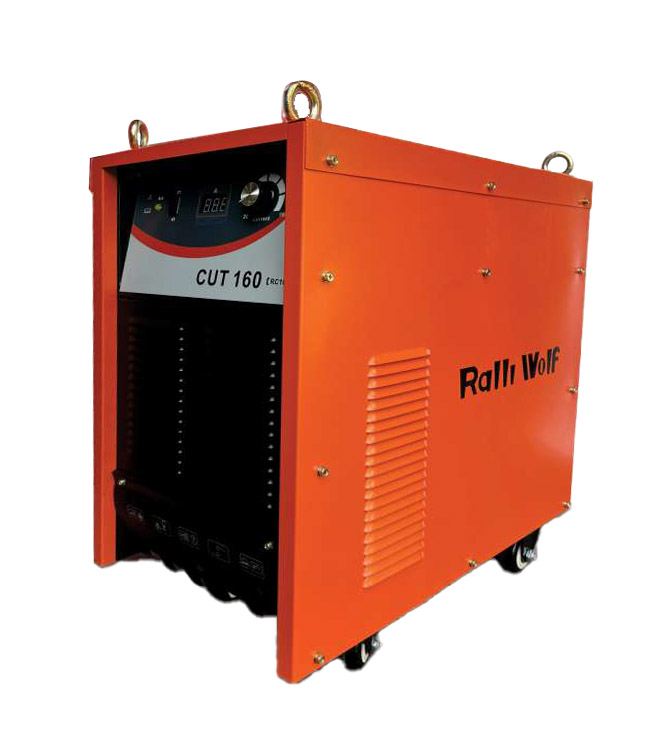

RC16

  • Plasma cutting
  • Current knob
  • 2T / 4T Switch
  • Gas inspection switch
  • Air pressure LED
  • Protection LED
  • Digital display
Specifications
Input Voltage (V)

AC 415 ± 15%

Frequency (HZ)

50 / 60

Rated Input Current (A)

44

Power (KVA)

29

No-load Voltage (V)

320

Output Current Range (A)

20 – 160

Rated Output Voltage (V)

144

Duty Cycle (%)

60

No-load Loss (V)

85

Efficiency (%)

>85

Power Factor

>0.93

Insulation Grade

F

Housing Protection Grade

IP 21

Arcing Way

Pilot arc transfer

Required Air Pressure (Kg/cm2)

0.4 – 0.6

Cutting Thickness(mm)

1 – 50

Net Weight (Kg)

60
