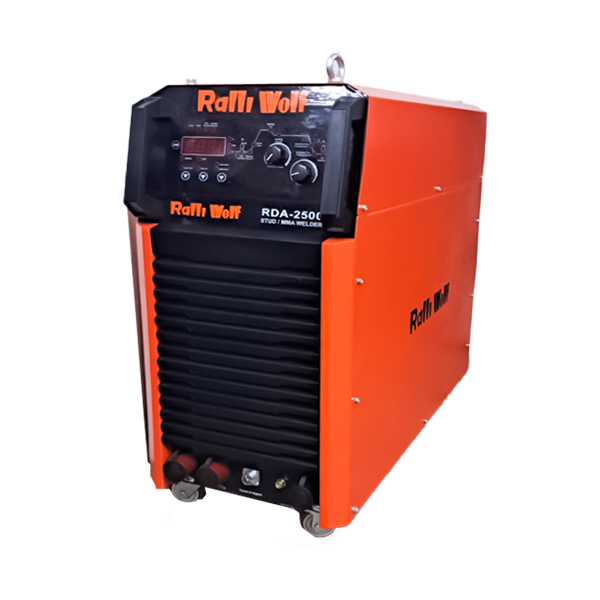

RDA 2500

 Benefits

  • Strength
  • Fast attachment
  • Cost Eficient
  • No weld spatter
  • Many Applications
  • Painted or preecoated items

Application

  • Food service equipment
  • Architectural lighting
  • Name plates
  • Tools
  • Shipbuilding
  • Construction
  • Elevator panels
  • Bridges
Specifications
Input Voltage

415V+/-10%

Rated Input Current (A)

162

Rated Input (KVA)

107

Rated Welding Voltage(V)

32

Power Factor

0.94

Welding Current (A)

250 – 2500

Weldable Stud diameter mm

6 – 25

Welding Time (S)

0.01-9.99

Weldable Stud Length (mm)

≤400

Cooling

Forced air

Weight (W/O Gun) KG

97

Protection

P-21S

Insulation

F

Dimension in mm (LxWxH)

780x355x870
