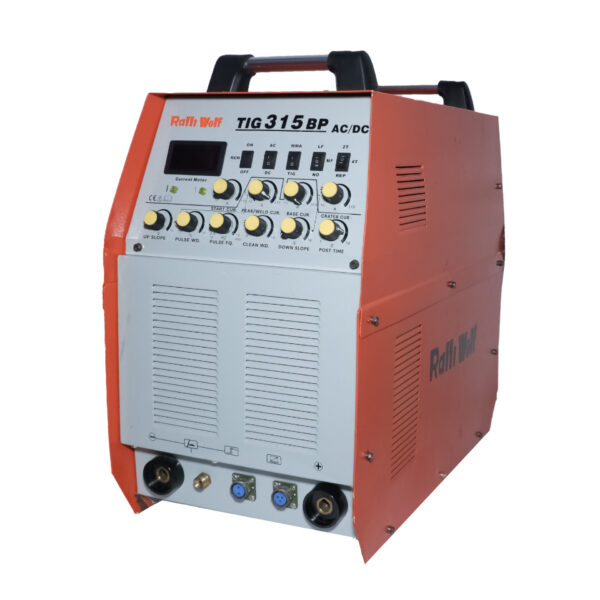

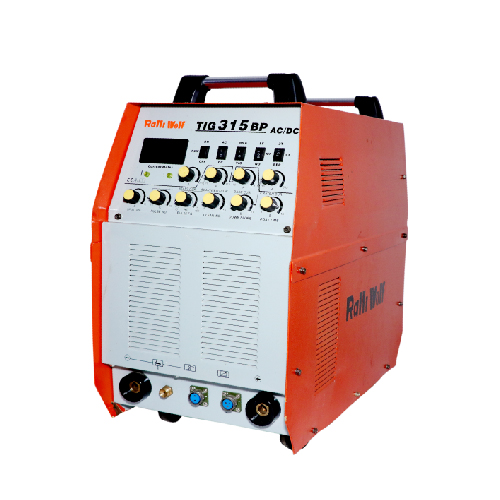

RT31A

Features

  • Multi functional power source : Pulse TIG AC/DC& MMA functions
  • 2T/4T and repeat Function available
  • Up slope & Down-slope function adjustable
  • Post flow 0-10s adjustable
  • Pulse frequency & pulse width adjustable
  • Start current , Base current, Peak current and creater bcurrent Adjustable
  • Remote contro;l Function
  • Wide range for input voltage 415V+ 15%

Application

  • Aluminum Products
  • Decoration
  • Light and medium Fabrication
  • Pipes & high pressure vessels
  • Constructions
Specifications
Products Type

TIG 315P AC / DC

Model

RT 31A

Input Voltage (V)

AC 415 ± 15%

Rated Input Current (A)

12.3 / 17.9

Power (KVA)

12.9

No-load Voltage (V)

54

Output Current Range (A)

5 – 315

Rated Output Voltage (V)

22

Duty Cycle (%)

60

No-load Loss (W)

80

Efficiency (%)

85

Power Factor

0.93

Pre-flow (s)

0 – 2

Post-flow (Sec.)

0 – 5.5

Arcing Way

High Frequency

Net weight (Kg)

34

MMA Facility

Available

Inverter Technology

MOSFET
